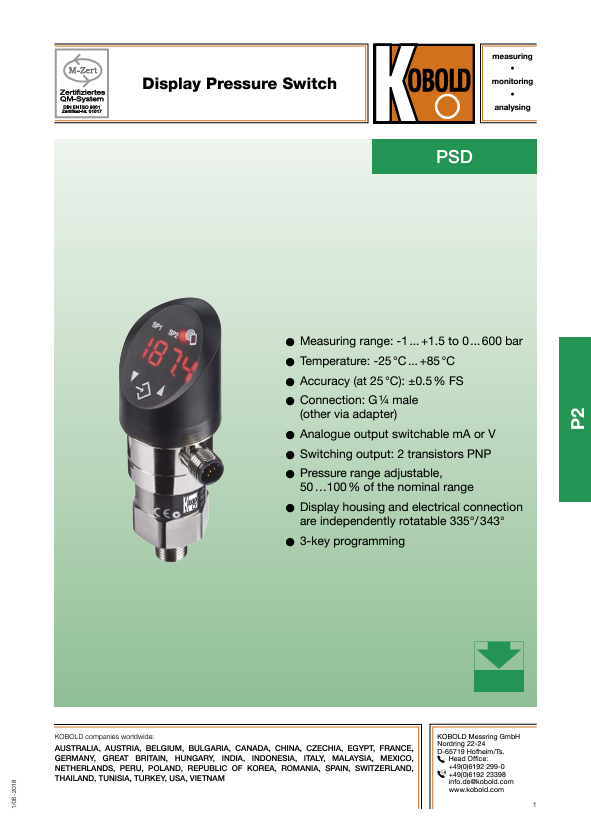

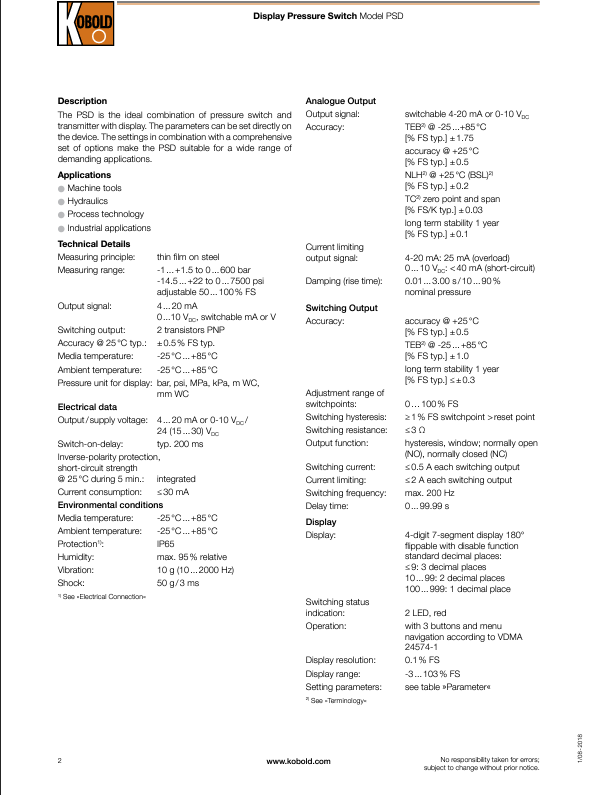

Measuring range: -1 … +1,5 bar … 0 … +600 bar

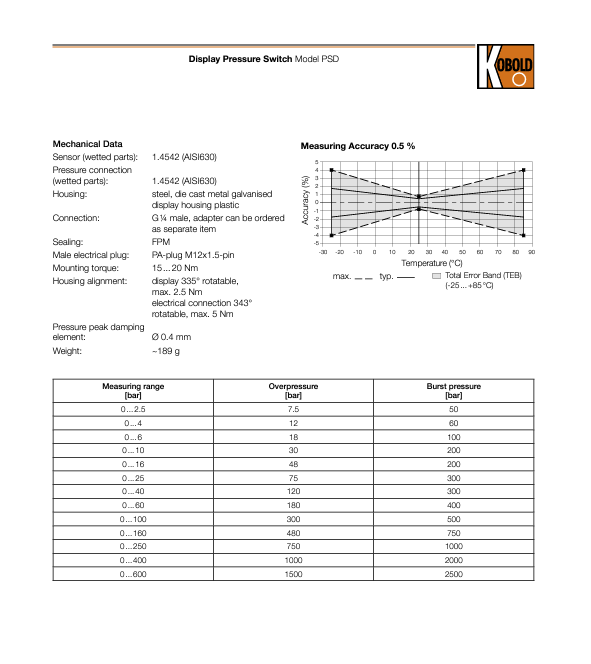

Accuracy: ± 0,5% of FS
t_max: +85°C (Medium)
Connection: G ¼
Material:
connection of st.steel 1.4542
housing of steel/die cast metal galvanised

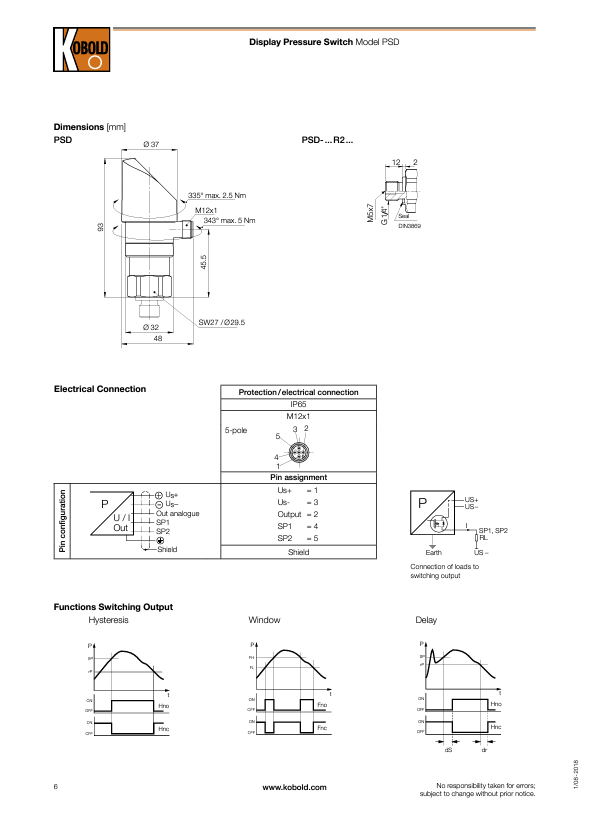

Output:
1 analogue output 4-20 mA or 0-10 V (switchable)
2 switching output PNP
Options/Features:
rotatable and invertible display; rotatable electrical connection;
switch point status indication via LEDs
